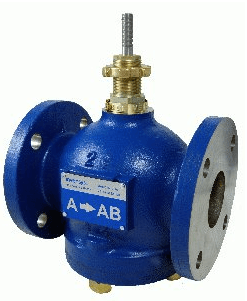

VB-8213-0-5-15
The Schneider Electric VB-8213-0-5-15 is a 5-inch flanged 2-way globe valve body from the VB-8200 series, featuring balanced plug technology for precise flow control in commercial HVAC systems. The VB-8213-0-5-15 supports water, glycol (25–50%), and steam applications with a Cv of 240 and equal percentage flow characteristic. Cast iron body with forged brass plug, brass trim, stainless steel 316 stem, and spring-loaded PTFE/EPDM packing for long-term reliability. Rangeability greater than 100:1 for accurate modulating control. Rated to 200 psig static pressure at 125 ANSI class with maximum saturated steam inlet of 35 psi. As an authorized Schneider Electric distributor, NSI stocks the VB-8213-0-5-15 with fast lead times. Request a quote today.
Out of Stock
Specifications
| Size | 5 in |
| Configuration | 2-Way |
| Connection | Flanged |
| Cv | 240 |
| Media | Water, Steam, Glycol 25–50% |
| Body Material | Cast Iron |
| Trim Material | Brass |
| Stem Material | Stainless Steel 316 |
| Pressure | 200 psig @ 150°F |
| Notes | Cast iron body, balanced plug, brass trim |
Applications
- Commercial HVAC Systems
- Chilled Water Systems
- Hot Water Systems
- Steam Control
- Building Automation Systems
