VB-7211-0-4-06

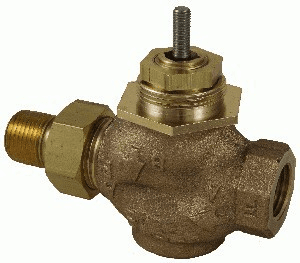

The Schneider Electric VB-7211-0-4-06 is a 3/4-inch union-NPT 2-way bronze globe valve body from the Venta VB-7200 series. The VB-7211-0-4-06 features an equal percentage flow characteristic with a Cv of 7.5, suitable for precise modulating control in small terminal unit and zone control applications. Bronze body with brass trim, stainless steel 316 stem, and spring-loaded PTFE/EPDM packing. Compatible with water, glycol (25–60%), and steam — rated to 400 psig static pressure at 250 ANSI class. Rangeability of 100:1 for accurate flow control across the full operating range. As an authorized Schneider Electric distributor, NSI stocks the VB-7211-0-4-06 with fast lead times. Request a quote today.
Certifications: ANSI 250
USD $202.71
Low Stock (2)
Specifications
| Size | 3/4 in |
| Configuration | 2-Way |
| Connection | Union-NPT |
| Cv | 7.5 |
| Media | Water, Steam, Glycol 25–60% |
| Body Material | Bronze |
| Trim Material | Brass |
| Stem Material | Stainless Steel 316 |
| Pressure | 400 psig @ 150°F |
| Notes | Bronze body, brass trim, stem up open |
Applications
- Terminal Unit Control
- Zone Valve Applications
- Steam Control
- Fan Coil Units
- Building Automation Systems
