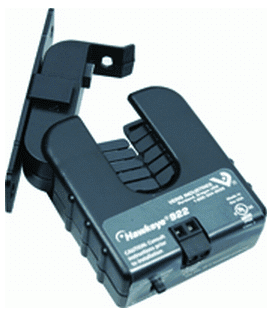

H922
The Veris Hawkeye H922 is a split-core AC current transducer for precise current monitoring in commercial HVAC and building automation systems. The H922 features a field-selectable range of 0–30/60/120A and a 0–5VDC analog output proportional to the measured current — ideal for load monitoring, energy management, and VFD verification. The split-core design clamps around an existing conductor without breaking the circuit, making the H922 ideal for retrofit installations. UL listed and field-selectable on site. As an authorized Schneider Electric distributor, NSI stocks the H922 with fast lead times. Request a quote today.
Certifications: CE, UL
Operating Temp: 5–140°F (-15–60°C)
USD $54.60
Low Stock (4)
Specifications
| Type | Transducer |
| Housing | Split-Core |
| Range | 0–30 / 60 / 120 A |
| Output | 0–5 VDC |
| Accuracy | ±2% FS |
| Notes | Field-selectable, UL Listed |
Applications
- Building Automation Systems
- HVAC Motor Monitoring
- Fan & Pump Current Sensing
- VFD Monitoring
- Belt Loss Detection
