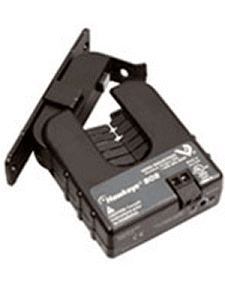

H908
The Veris Hawkeye H908 is a split-core AC current switch for fan and pump status monitoring in commercial HVAC and building automation systems. The H908 features an adjustable trip point, LED status indicator, and normally open output — self-powered from the monitored conductor with no external power required. The split-core design clamps around an existing conductor without breaking the circuit, making the H908 ideal for retrofit AHU, fan coil, and pump installations. Minimum trip point 2.5A. UL listed and CE marked. As an authorized Schneider Electric distributor, NSI stocks the H908 with fast lead times. Request a quote today.
Certifications: CE, UL, RoHS
Operating Temp: 5–140°F (-15–60°C)
USD $58.24
Low Stock (4)
Specifications
| Type | Switch |
| Housing | Split-Core |
| Range | 2.5–135 A |
| Output | N.O. 1A @ 30VAC/DC |
| Notes | Min trip 2.5A, status LED, UL & CE |
Applications
- Building Automation Systems
- Fan & Pump Status Monitoring
- HVAC Motor Proving
- AHU Fan Proving
- Belt Loss Detection
